ALL-SUN EM125 25MHz 2 IN 1
תיאור המוצר

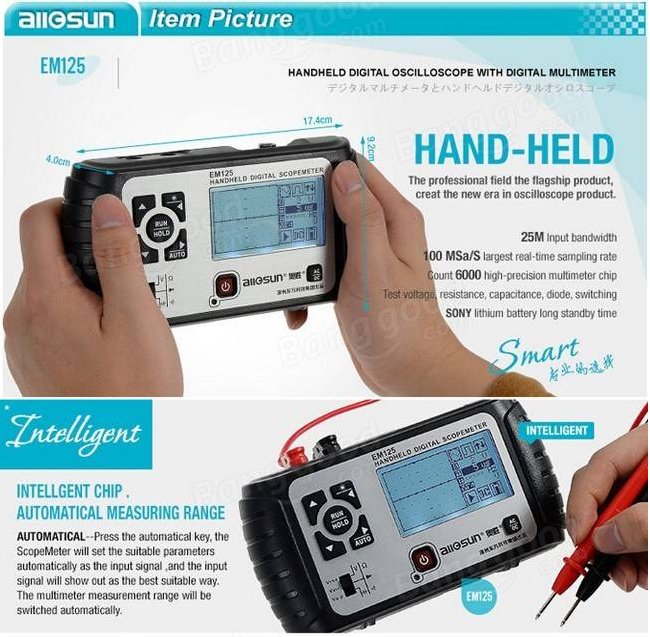

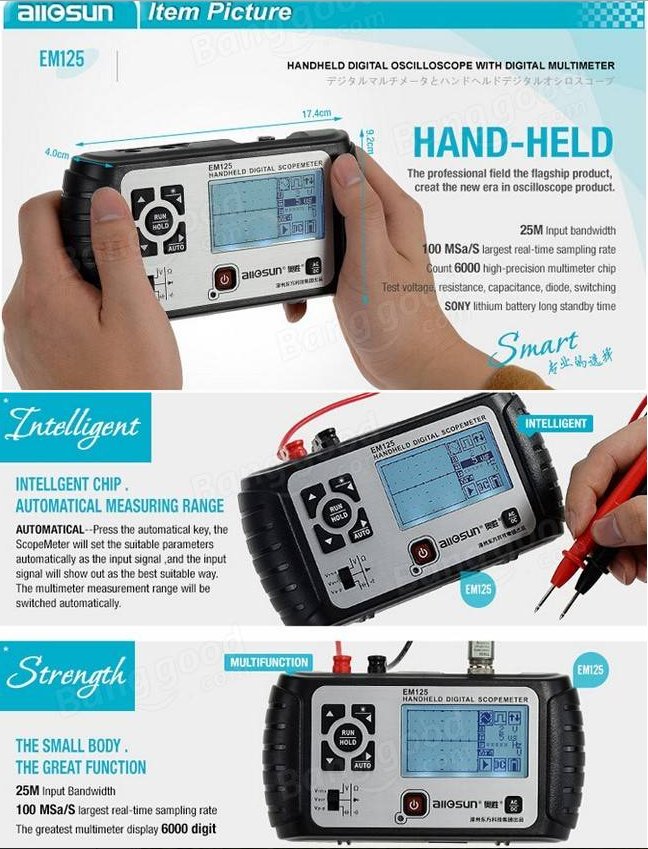

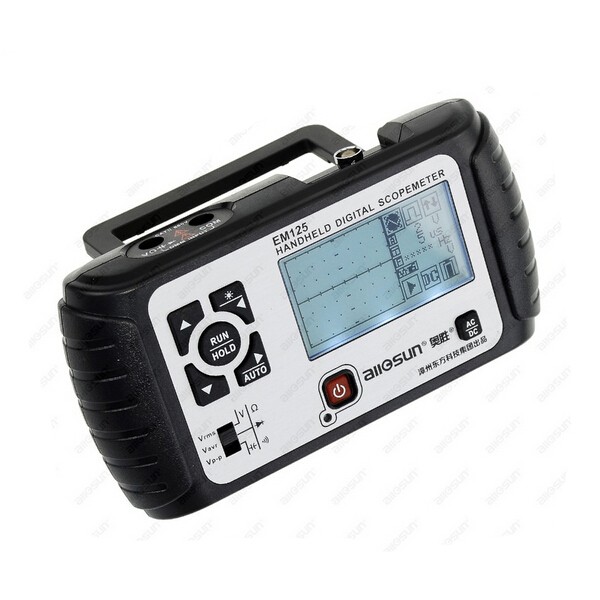

ALL-SUN EM125 25MHz 2 IN 1 MINI HANDHELD OSCILLOSCOPE + MULTIMETER
Description :

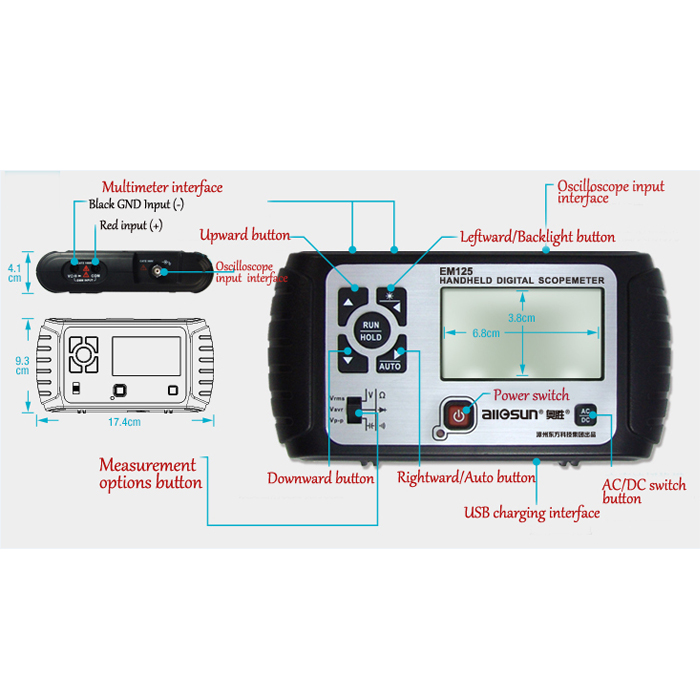

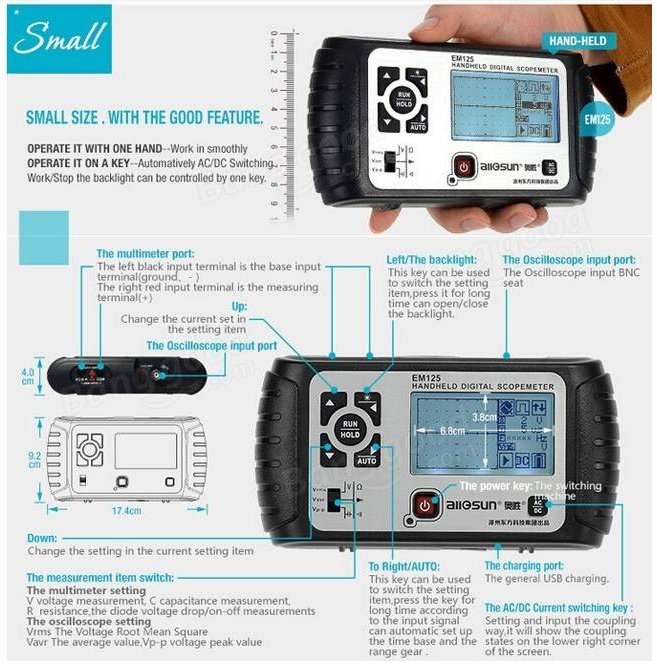

Screen size : 68mm(horizontal) x 38mm(vertical); backlight : LED

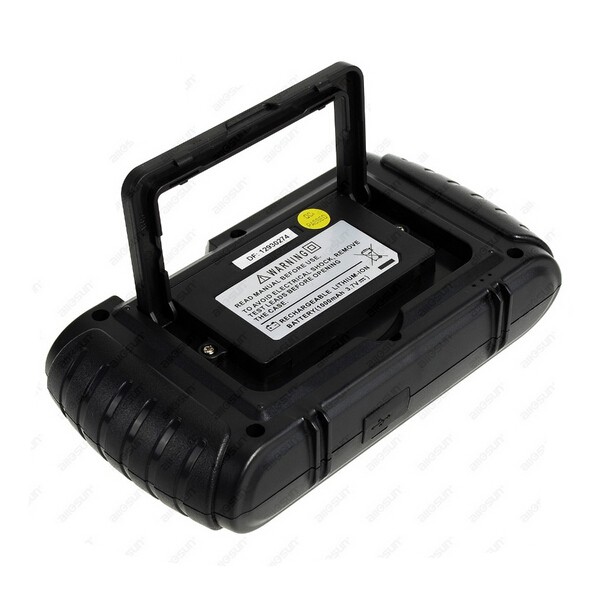

Battery : 3.7V Lithium battery 1200mAH
Charger : Input : 100VAC-240VAC
Output : 5V±10%DC 1000mA

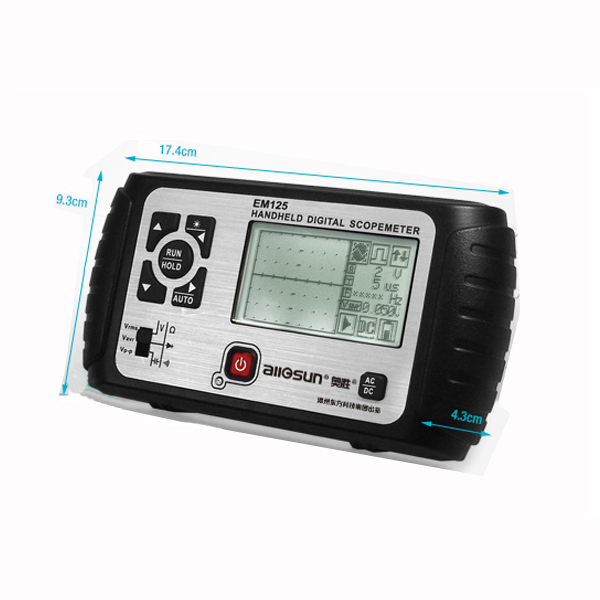

Size : 174 x 92 x 40mm
Specification of EM125 Oscilloscope :
Bandwidth(-3dB) : 25MHz
Sample : Max sample : 100MSa/S
Channel : 1
Couple : AC, DC
Rising time : < 17.5 nS
Input independence : 1MΩ,≤20pF
Max input voltage : 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
Vertical resolution : 8bit
Vertical sensitive : 50mV/div-20V/div
Horizontal resolution : 10nS/div
Horizontal sensitive : 10nS/div -5S/div
Depth-sampling : 0.1K/Channel
Trigger mode : AUTO, Rising edge, falling edge

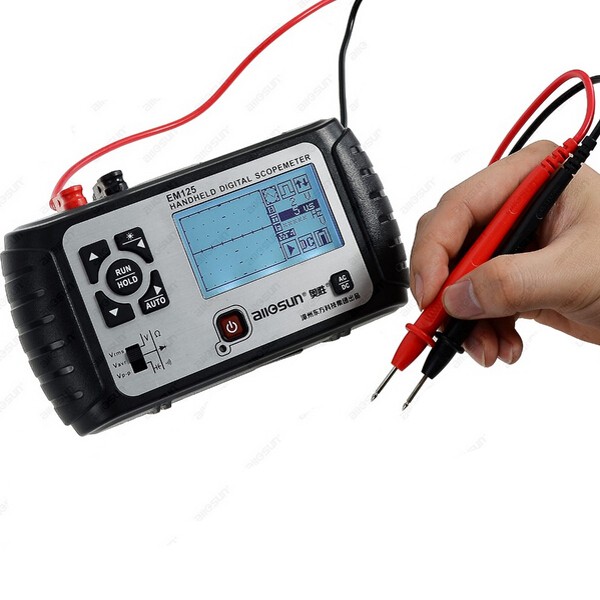

Specification of Multimeter :
Measure count : 6000
Input : Max input voltage : 600 Vrms CAT II, 300 Vrms CAT III
On resistance : 25Ω(at the range of 600Ω), if less it beep
Diode measure : >2V shows OL(overload)
Capacity measure : 6.000nF- 6mF 7range
Resistance measure : 600.0Ω- 60.00MΩ 6range
Voltage measure : 6V- 600V 3 rang
Voltage:
|
DC Voltage |
6.000 V |
|
0.5 ±8 |
|
60.00 V |
|
0.5 ±8 |
|
|
600.0 V |
|
0.5 ±8 |
|
|
AC Voltage |
6.000 V – 600.0 V |
40 Hz – 400Hz |
1.0 ±10 |
|
400Hz – 2 kHz |
3.0 ±10 |
||
|
AC+DC Voltage |
6.000 V – 600.0 V |
40 Hz – 400Hz |
1.0 ±10 |
|
400Hz – 2 kHz |
3.0 ±10 |
Resistance:
|
600.0Ω |
1.0 ±5 |
|
6.000 KΩ |
1.0 ±5 |
|
60.00 kΩ |
1.0 ±5 |
|
600.0 kΩ |
1.0 ±5 |
|
6.000 MΩ |
1.0 ±5 |
|
60.00 MΩ |
2.0 ±5 |
Capacitance:
|
6.000 nF |
3.0 ±8 |
|
60.00 nF |
3.0 ±8 |
|
600.0 nF |
3.0 ±8 |
|
6000 nF |
3.0 ±8 |
|
60.00 uF |
3.0 ±8 |
|
600.0 uF |
3.0 ±8 |
|
6.000 mF |
3.0 ±8 |
>>>>WANT TO DOWNLOAD ENGLISH USER MANUAL, PLEASE CLICK HERE<<<<

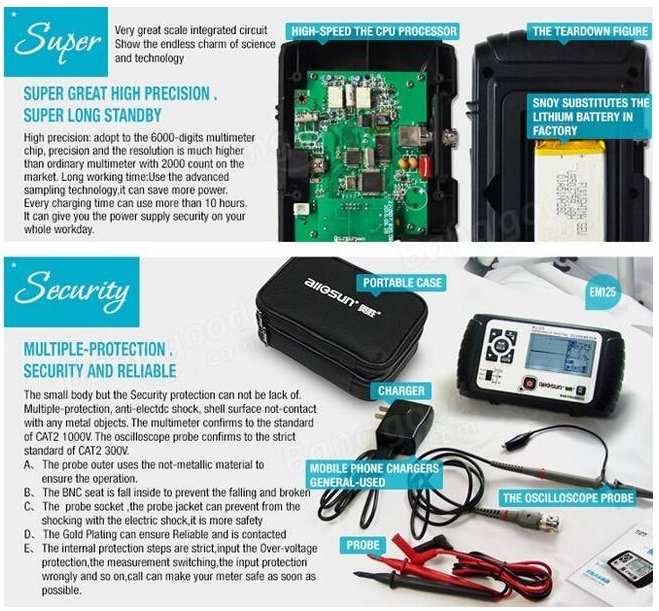

Package includes :
1 x EM125 Oscilloscope
1 x Probe for Oscilloscope
2 x Text Lead Line for Multimeter
1 x Soft Case
1 x DC Adapter (Comes with a mini plug adapter according to your country :)
