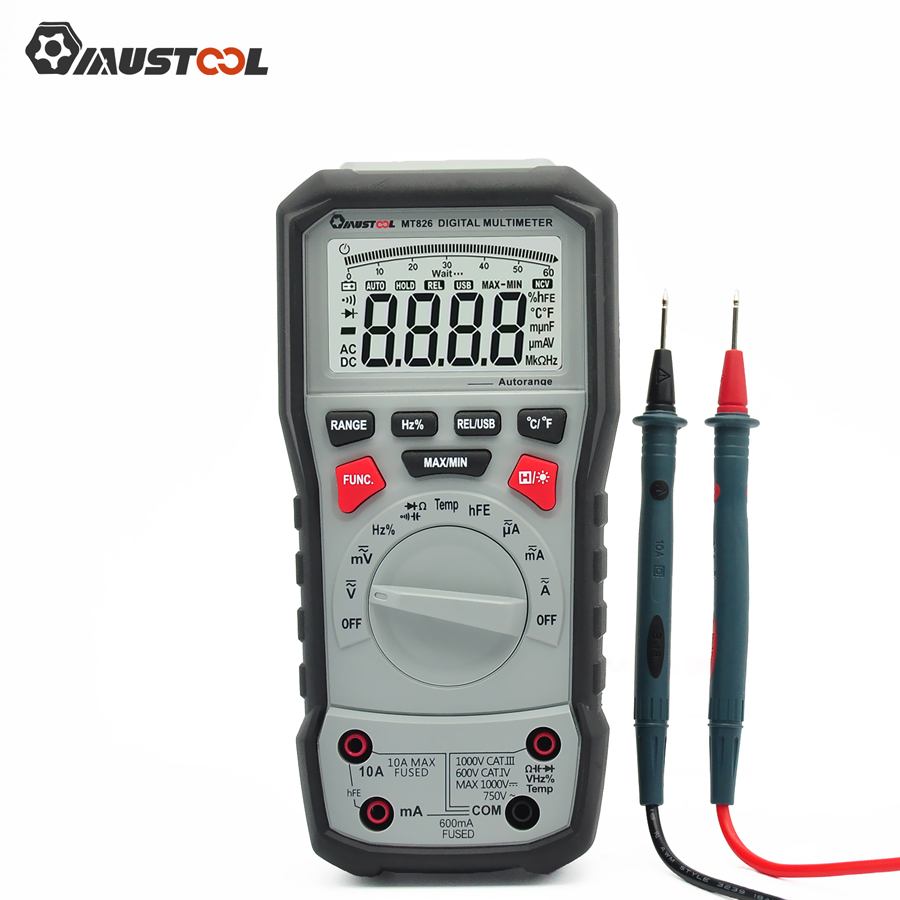

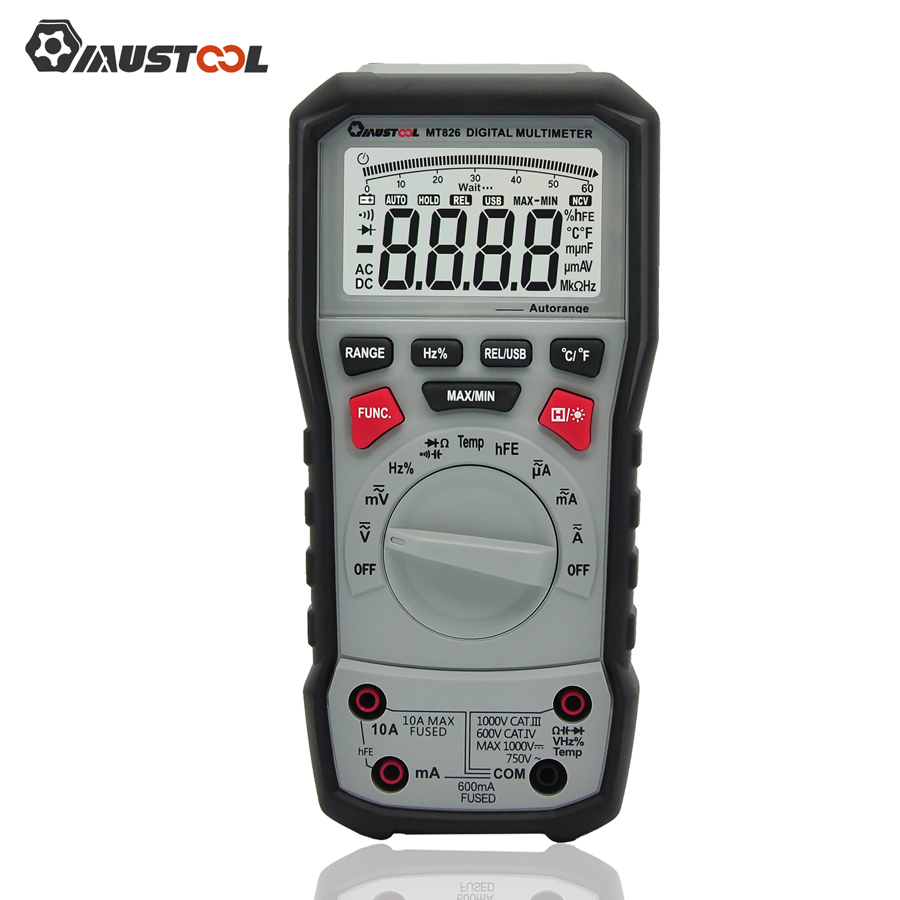

MUSTOOL® MT826 DIGITAL MULTIMETER AC/DC
תיאור המוצר
MUSTOOL® MT826 TRUE RMS PROFESSIONAL DIGITAL MULTIMETER AC/DC CURRENT VOLTAGE RESISTANCE CAPACITANCE FERQUENCY CONTINUITY ℃/℉ TRANSISTOR DIODE TESTER WITH SILICONE TEST LINE & USB CABEL
Advantages:
* Multi-fucntion, measuring almost all the function a multimeter has, just one in your tools bag is enough !
* True RMS (TRMS), more accurate to show you the real time measured value.
* The body was made of fireproof material, press resistant and drop resistance (can be dropped from 3M without damage).

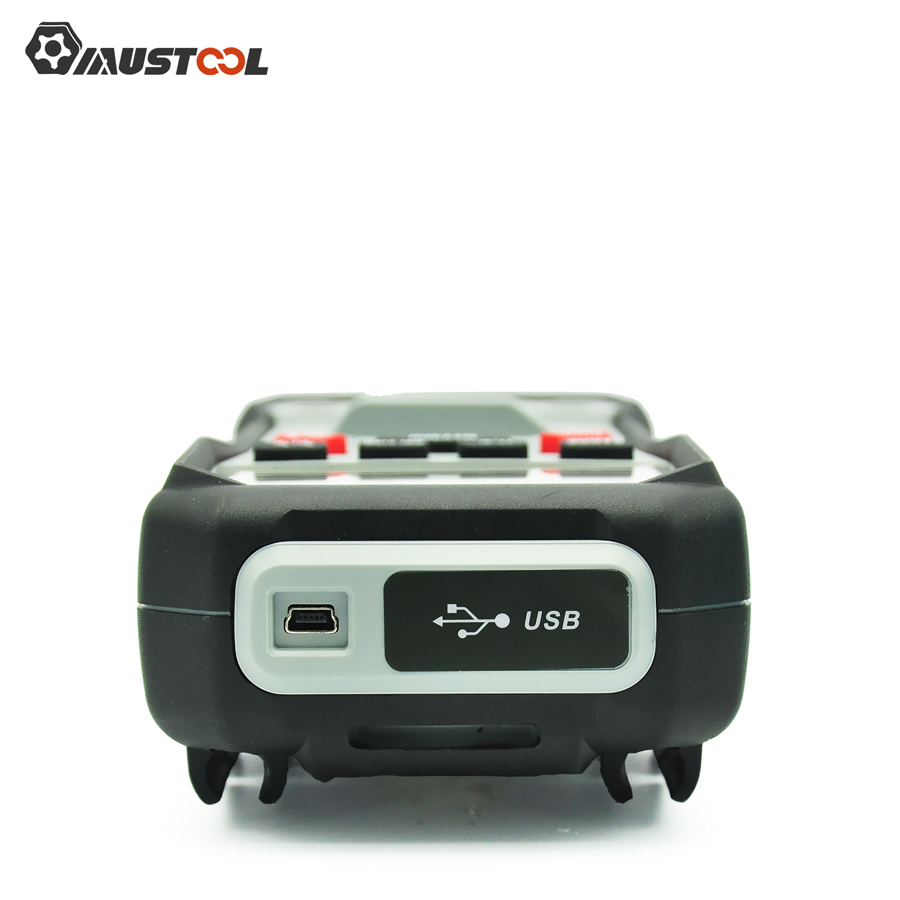

* Equipped with USB interface function, measured data can be uploaded to the computer for display, record and analysis via USB port.
* High-level accessories, comes with 2pcs 1.5m length (1000V 10A CAT III & 600V 10A CAT IV) silicone test Leads for you, 5 times long service life than normal.
* MUSTOOL - 2016 Original Brand from Banggood, focus on the area of professional instrument & tools. best service, highest grade of quality!
|
Model |
MT826 |
||
|
Specifications |
Range |
Best Accuracy |
|
|
AC Current (A) |
600μA/6000μA/60mA/600mA |
±(1.5%+3) |
|
|
6A/10A |
±(3.0%+10) |
||
|
DC Current (A) |
600μA/6000μA/60mA/600mA |
±(1.2%+3) |
|
|
6A/10A |
±(2.0%+10) |
||
|
AC Voltage (V) |
60mV/600mV/6V/60V/600V |
±(0.8%+3) |
|
|
750V |
±(1.0%+3) |
||
|
DC Voltage (V) |
60mV/600mV/6V/60V/600V/1000V |
±(0.7%+2) |
|
|
Resistance (Ω) |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ |
±(1.2%+5) |
|
|
60MΩ |
±(2.0%+5) |
||
|
Frequency(Hz) |
10Hz/100Hz/1000Hz/10kHZ/100kHz/1000kHZ/10MHZ |
±(1%+5) |
|
|
Duty Ratio |
1~99% |
3.0% |
|
|
Capacitance (F) |
10nF/100nF/1000nF/10μF/100μF/1000μF/10mF/20mF |
±(3.0%+3) |
|
|
Temperature(°C) |
-20°C~0°C |
±(5%+3°C) |
|
|
0°C~400°C |
±(1.0%+3°C) |
||
|
400°C~1000°C |
±2.0% |
||
|
Temperature(°F) |
-4°F~32°F |
±(5.0%+6°F) |
|
|
32°F~752°F |
±(1.0%+4°F) |
||
|
752°F~1832°F |
±2.0% |
||
|
Features |
|||
|
Display Count |
6000 |
||
|
Auto/Manual Range |
√ |
||
|
Bargraph Display |
√ |
||
|
Relative Measurement |
√ |
||
|
True RMS |
√ |
||
|
USB Interface |
√ |
||
|
Diode |
Forward DC Current is about 1mA |
√ |
|
|
Transistor |
|
√ |
|
|
Data Hold |
|
√ |
|
|
Zero Mode |
|
√ |
|
|
LCD Backlight |
|
√ |
|
|
Auto Power Off |
Around 15 Minutes |
√ |
|
|
Continuity Buzzer |
Open Circuit Voltage is about 0.5V |
√ |
|
|
Low Battery Indication |
≤2.5V |
√ |
|
|
Input Protection |
Automatically Display “-” |
√ |
|
|
Fuse Protection |
mA: Fuse F600Ma/250 V Fast Speed Fuse |
√ |
|
|
General Characteristic |
|||
|
Power |
AA 1.5V x 4 Batteries (includes) |
||
|
Large LCD Size |
60.5mm x 35.5 mm |
||
|
Product Color |
Black + Grey |
||
|
Product Net Weight |
410g |
||
|
Product Size |
195mm x 94mm x 45mm |
||
|
Package Size |
292mm x 150mm x 70mm |
||
|
Standard Package Includes |
1x MT826 Digital Multimeter, 2x Silicone Test Line, 1x Temperature Probe, |
||
