CURRENT SIGNAL TRANASMITTER PLC

תיאור המוצר

4-20mA, 1-10V , CURRENT SIGNAL GENERATOR SOURCE TRANASMITTER PLC VALVE CALIBRATION

Features:

✔ This is a newly developed, neatly designed, and high precision current loop simulator. Its design is based on years of experience field work calibrating work, it is reliable and considerate.
✔ The device is mainly used for industrial PLC, instrument calibration, electric valve calibration, etc.
✔ The device is easy to operate, with long stand-by time, handy, and featured by high precision.

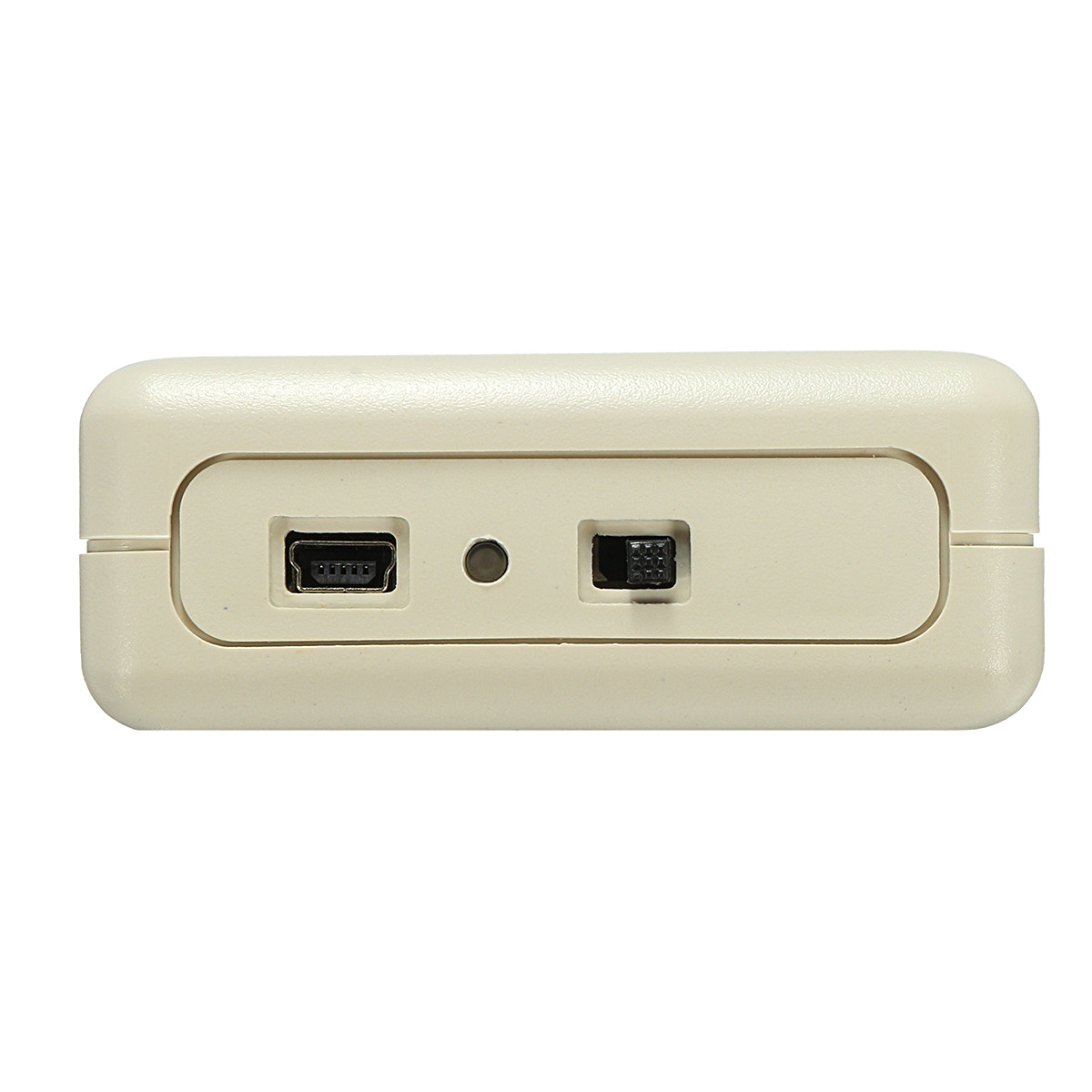

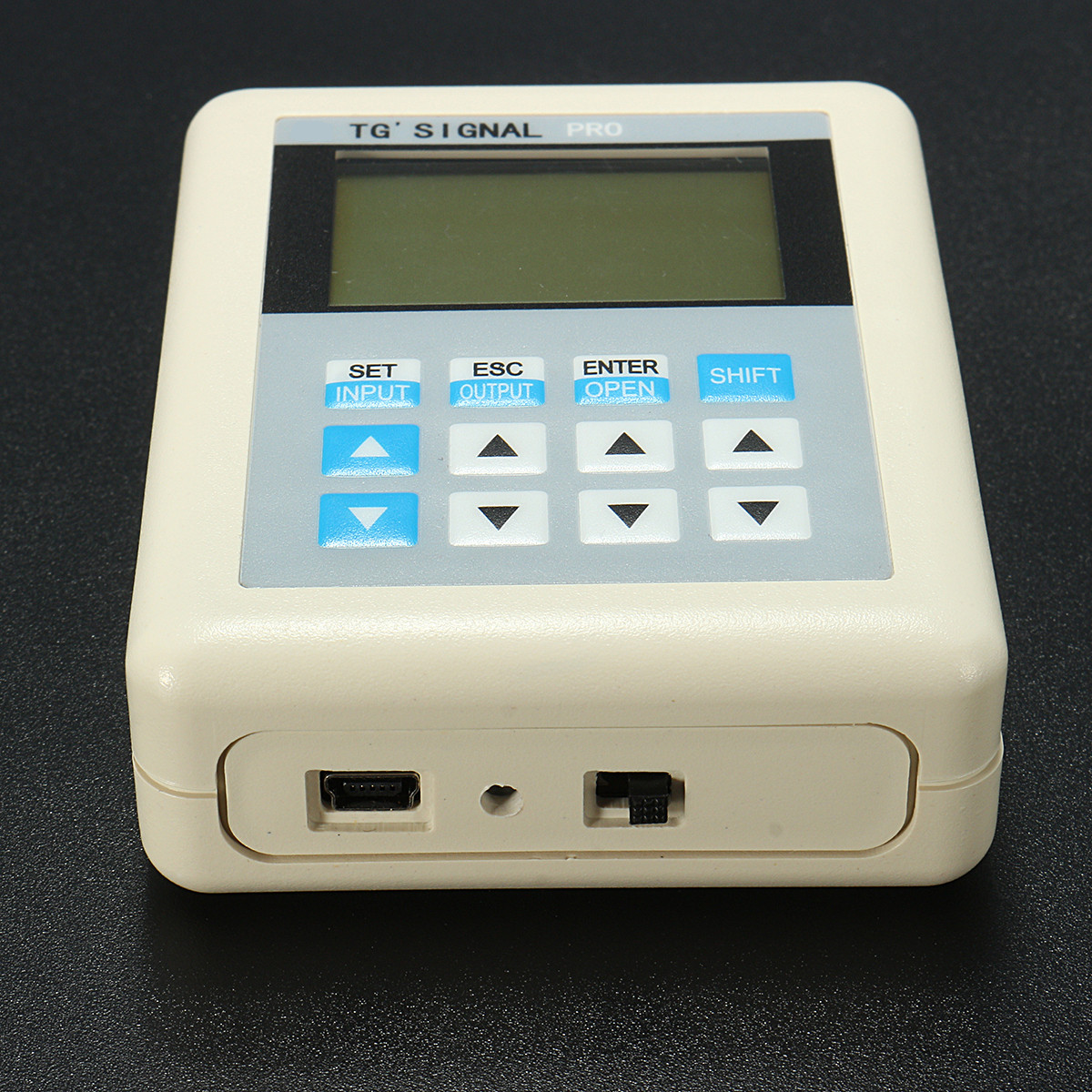

✔ For recharging, we can use mobile phone or PC to charge it via its mini USB interface.
✔ The device has two channels of output: one channel for current and voltage output, the other channel is sensor transducer analog output.
✔ The analog output has two features:
✔ First, it can simulate transducer of 2-wire-system and 4~10mA current, e.g pressure transducer. The positive / negative of the device can be regarded as the positive/negative of a 2-wire-system transducer).
✔ Second, passive output function can be used for 0~24mA input. Both input and output can set range. For example, we set 0~50, which correspond to 4~20mA display.

Specification:

Material: Acrylonitrile Butadiene Styrene (ABS)
Active current: 0~24mA output (definition 0.01mA). Max load 500 ohm.
Passive current: 0~24mA output(definition 0.01mA). Max load power supply 25V. Can be used also as current input.
Passive input: 0~24mA(definition 0.01mA).
Voltage output: 0~10V(definition 0.01V).
Inaccuracy deviation: +/- 0.01
Environment temperature: -10~50℃
USB power supply and recharge.
Dimensions: 90 x 70 x 28 mm
Product Description: 4-20mA / 0-10V Current Signal Generator Source Transmitter PLC Valve Calibration

Package Included:

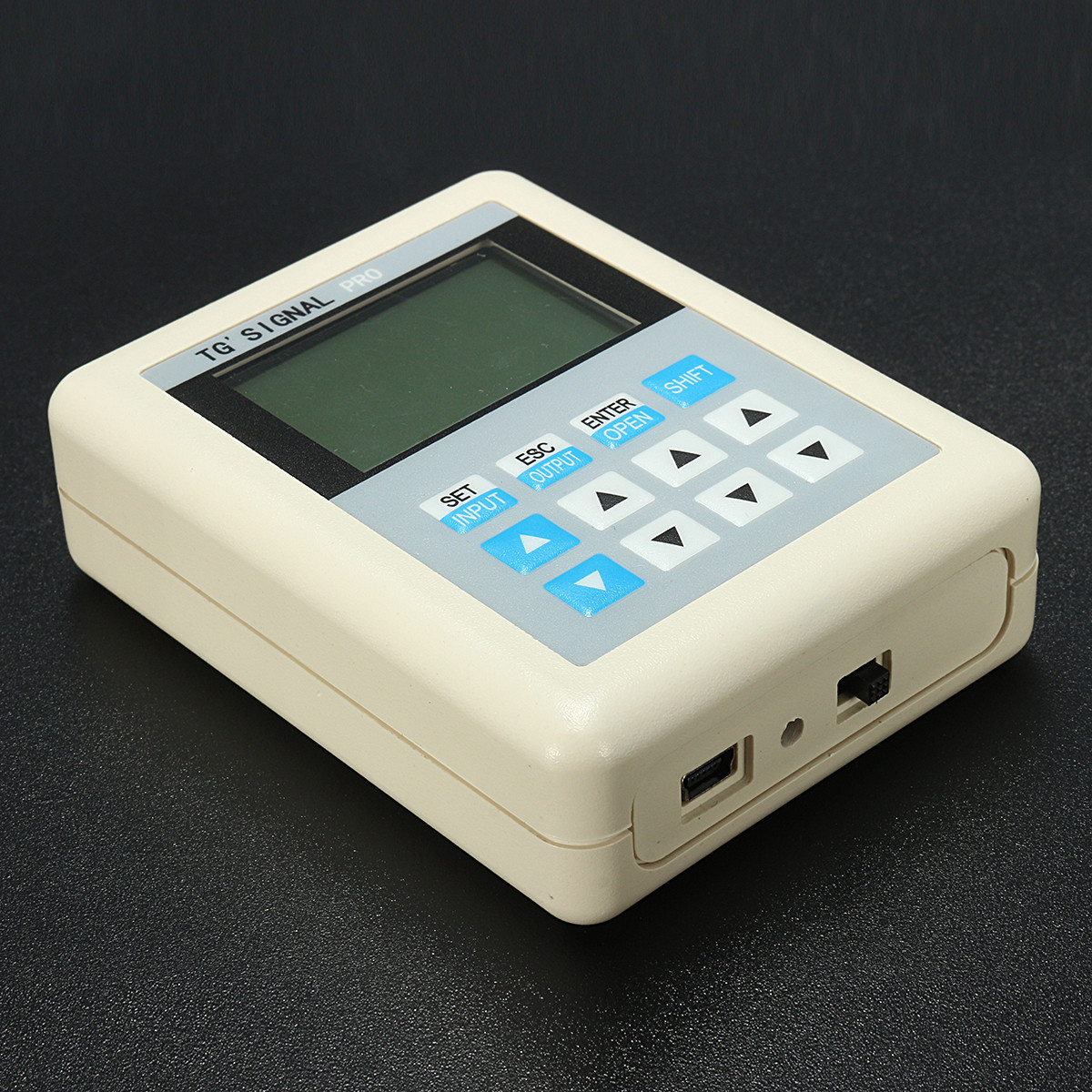

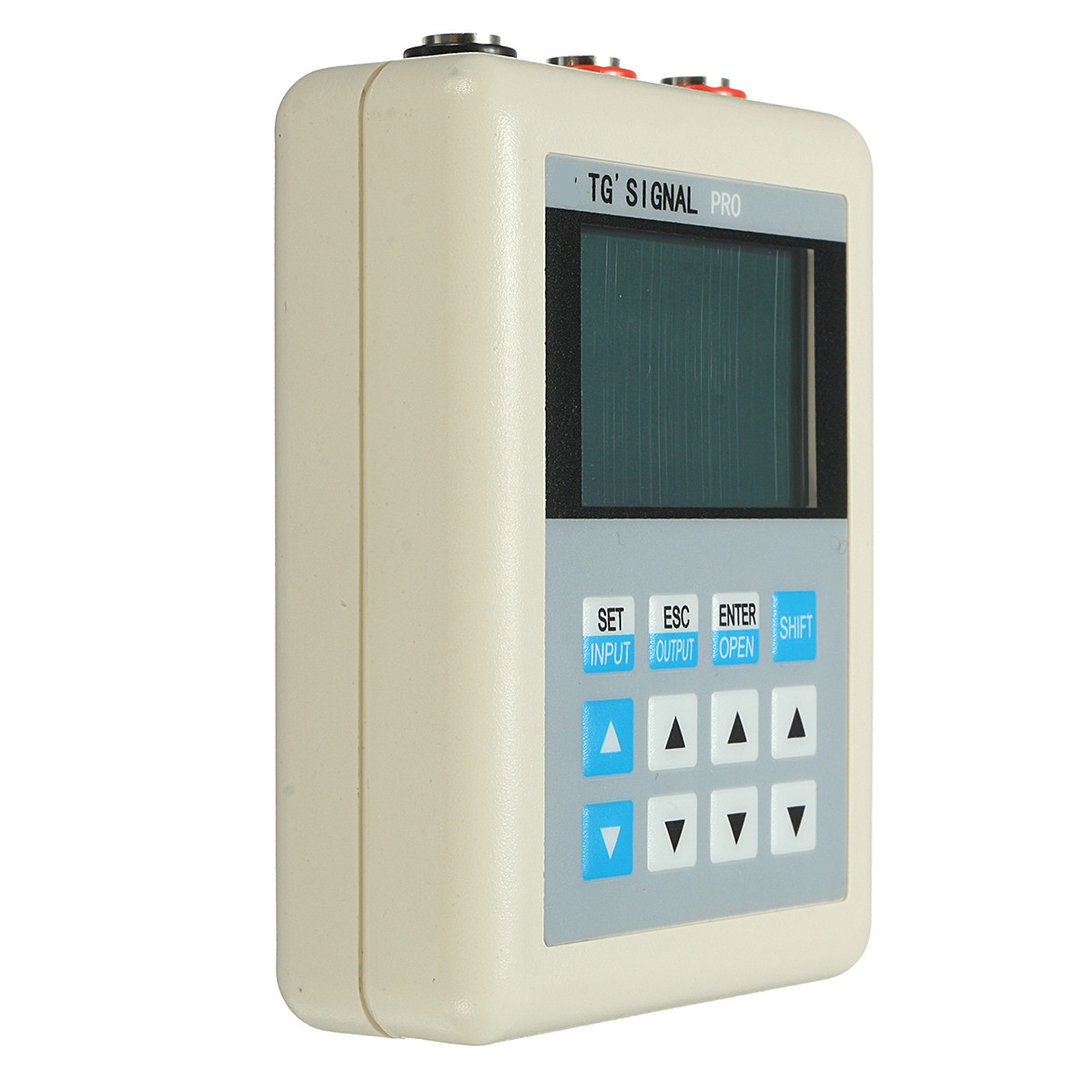

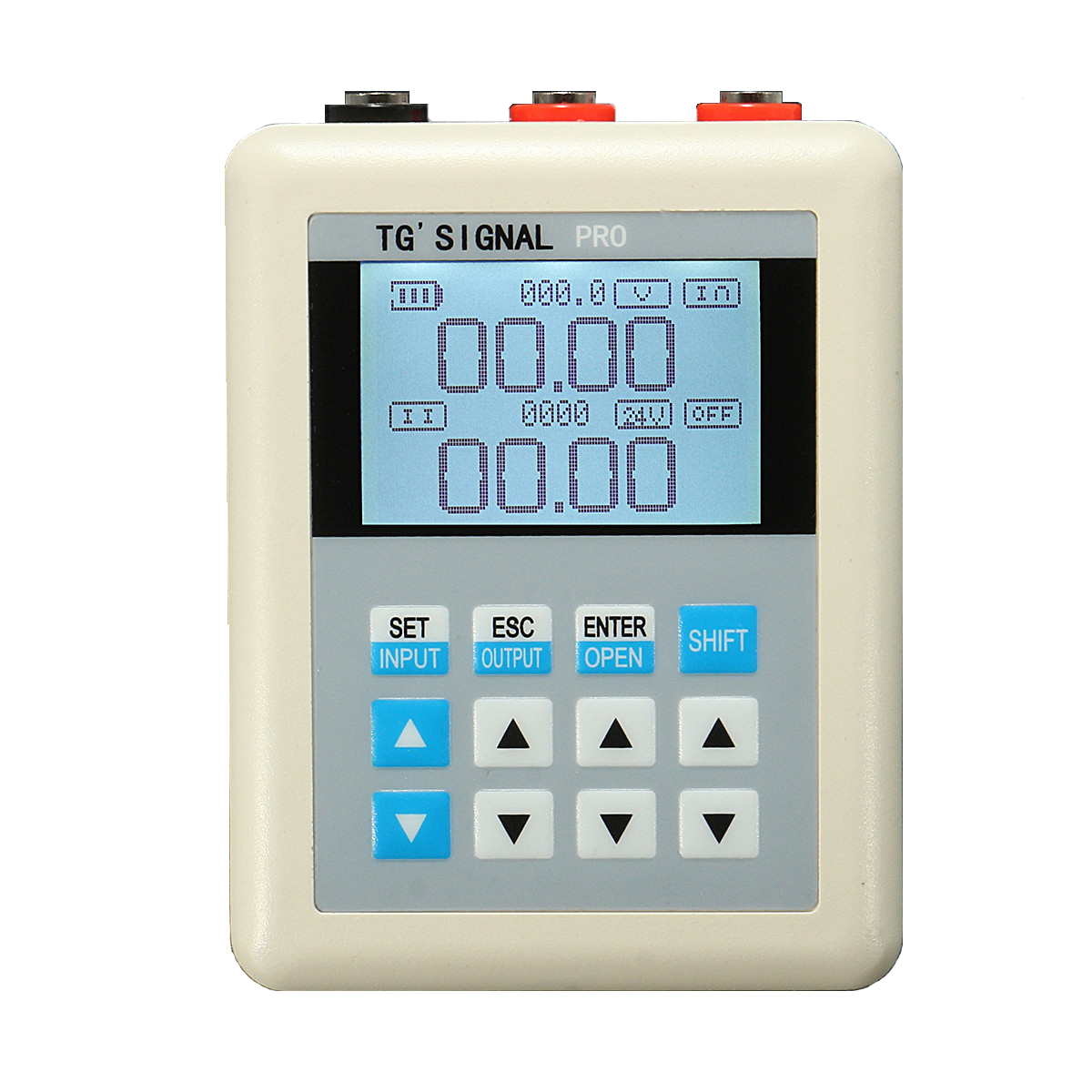

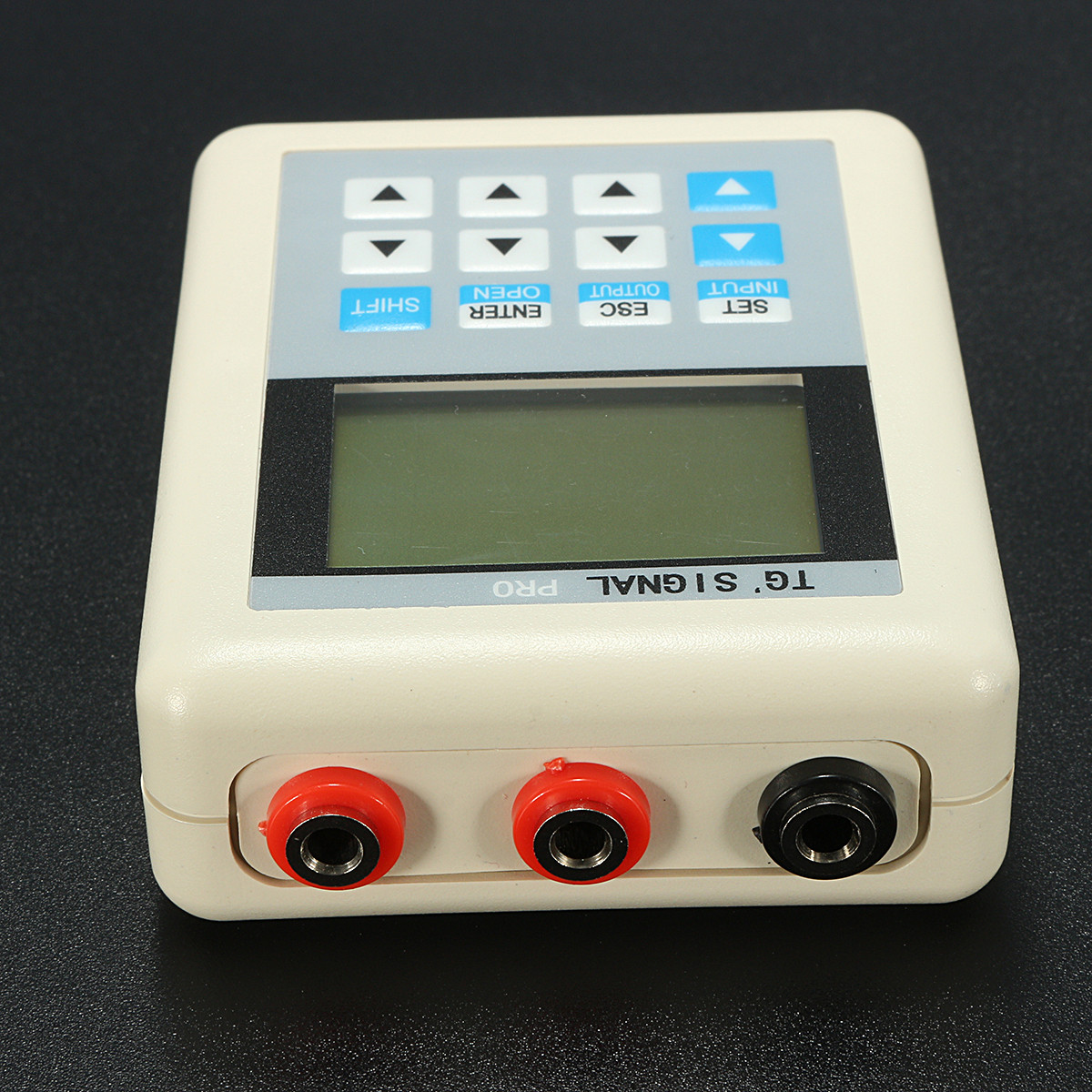

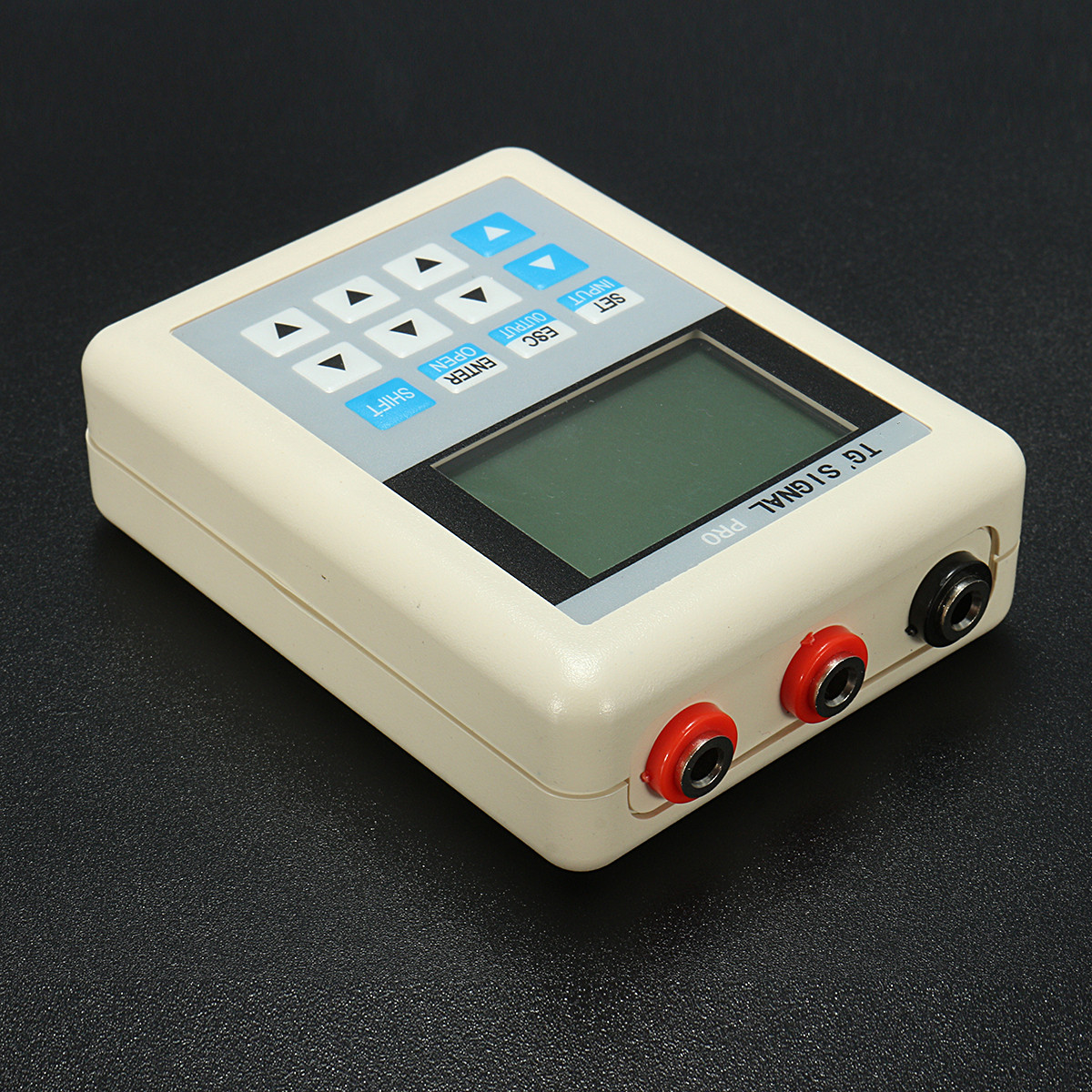

1 x Current Loop Simulator

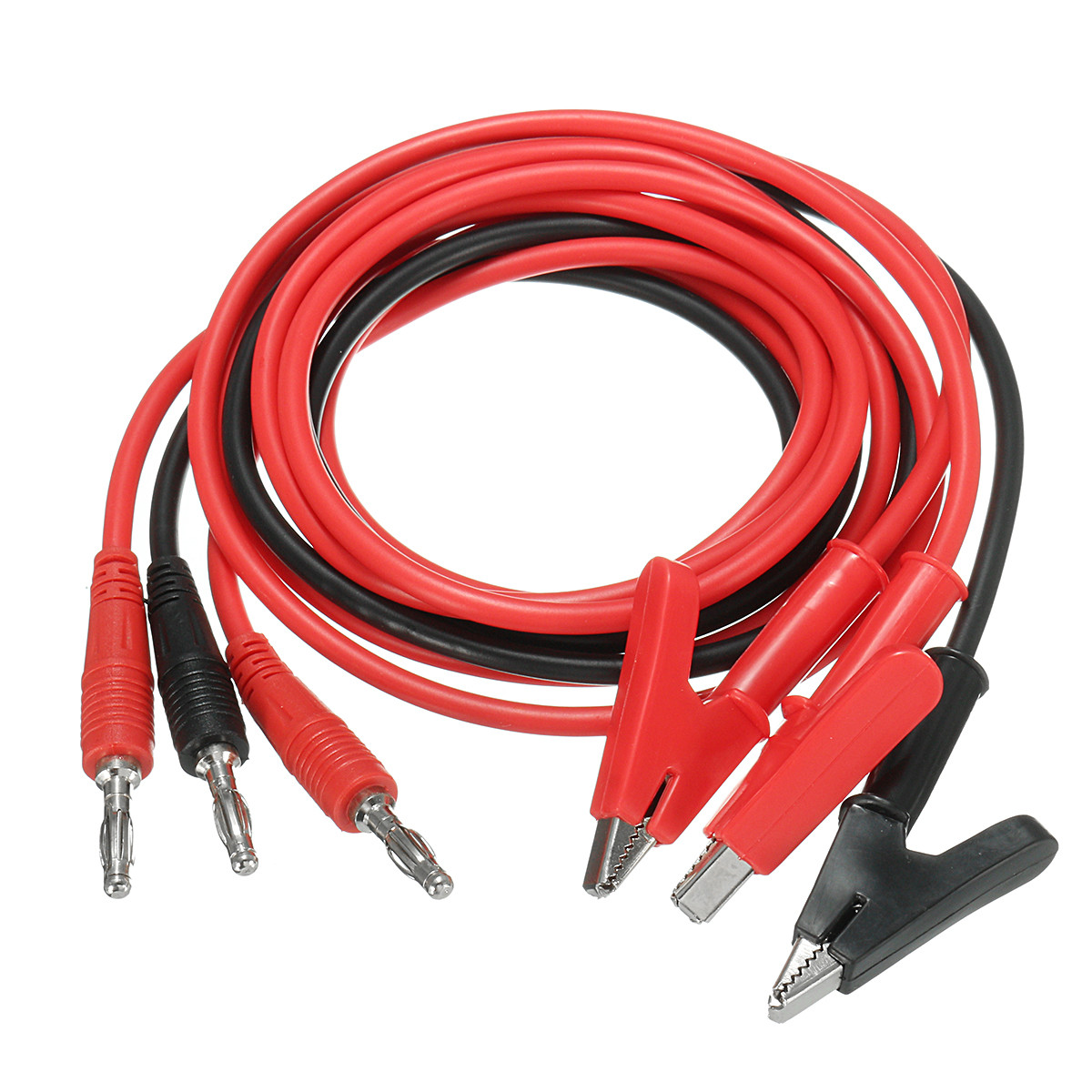

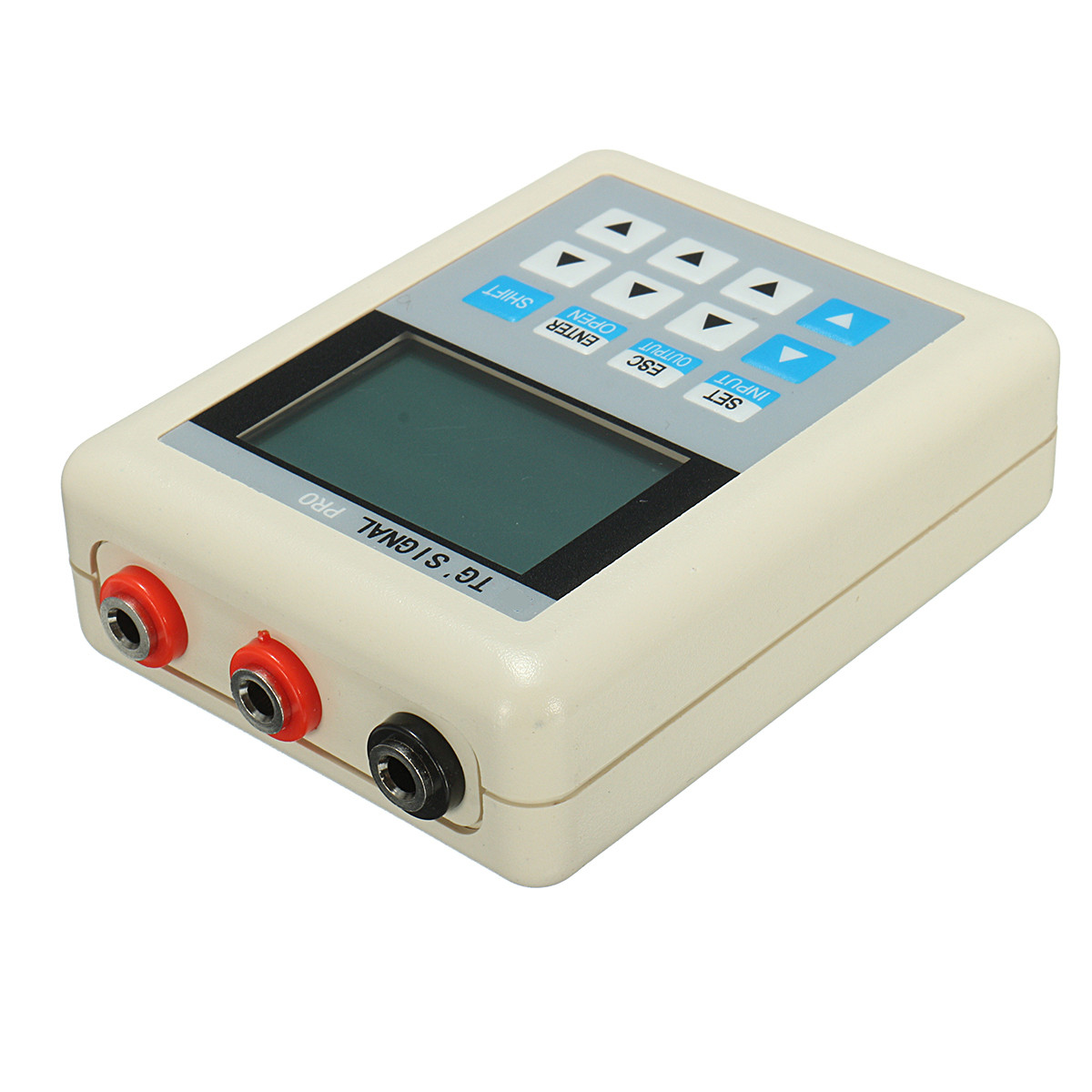

1 x Pair of Banana Cables

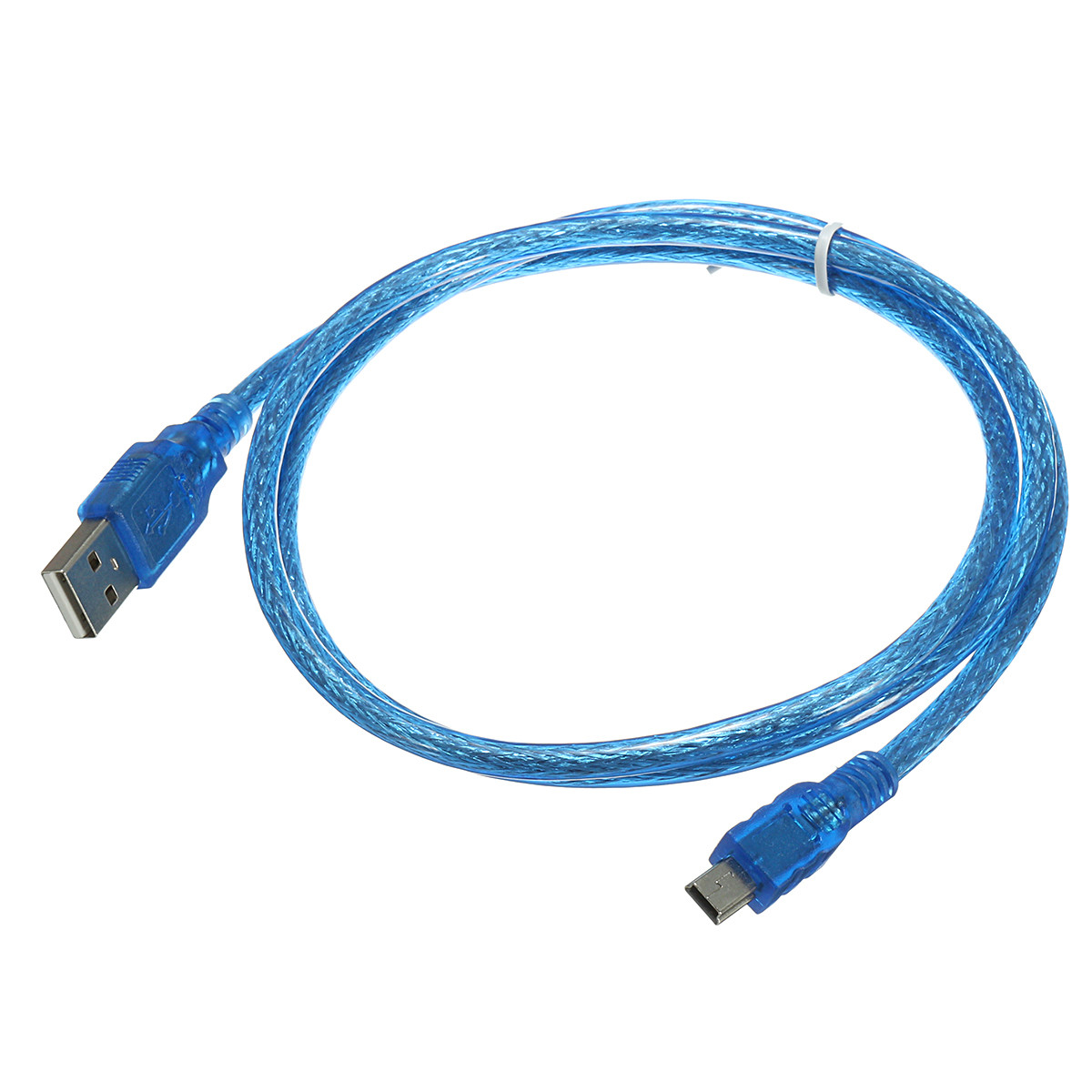

1 x Mini USB Cable for Recharging
